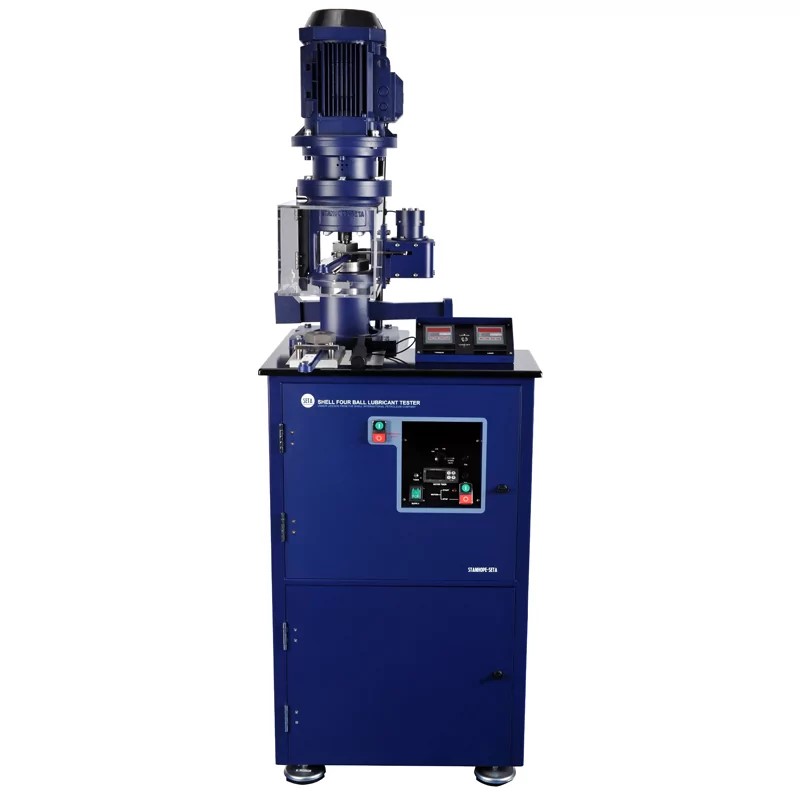

Seta-Shell Four Ball Lubricant Tester

seta-shell_four_ball_lubricant_tester


The Seta-Shell Four Ball Lubricant Tester (manual load) determines friction and wear properties of extreme pressure oils and greases. Used in tribology research laboratories and in the routine quality control of finished lubrication products.

The digital speed controller has four programmable presets, three are pre-programmed to the most commonly used speeds; 1200, 1475 and 1760 rpm. Duration of the test can be controlled by the digital timer, which has four ranges and spans 0.1 seconds to 9999 hours. If the balls weld during a test, the power to the drive motor is automatically turned off, via a torque sensing mechanism.

Methods

ASTM D2266 ASTM D2596 ASTM D2783 ASTM D4172 IP 239BS EN ISO 20623 BS ISO 26422 CEC L-45-T-93 DIN 51 350
