ASTM D2170; ASTM D2270; ASTM D445; ASTM D446; IP 71; IP 226; IP 319; BS 188; BS 2000-71; ISO 3105; BS EN 12595; BS 2000-319; EN 3104; DIN 51 366; DIN 51 562

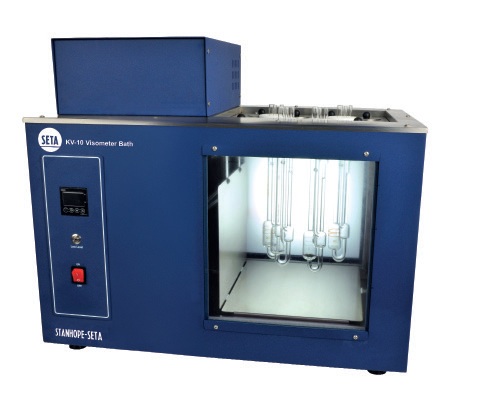

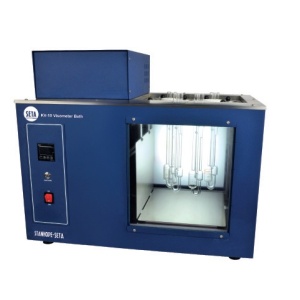

The KV-10 Viscometer Bath precisely maintains the temperature of viscometer tubes, which are used to measure the viscosity of liquid petroleum products.
The instrument consists of an oil-filled temperature-controlled bath. The bath holds up to ten standard viscometer tubes, which can be viewed through the glass panel at the front of the instrument. Each aperture has a cover to minimise heat loss when not in use. LEDs illuminate the bath so that the viscometer tubes can be viewed more easily.
- Up to 10 viscometer tubes
- 50 litre oil/water bath
- Temperature stability ±0.02 up to and including 100 °C, ±0.03 above 100 °C
- Digital display with 0.01 °C resolution
- Oil, silicone fluid or water filled depending on temperature of use
- Low liquid level and over temperature protection
- Double wall glass front panel ensures optimum insulation and reduce heat loss
- Integral back lighting
- Clear and precise reading of viscometer tubes
